Ballproof

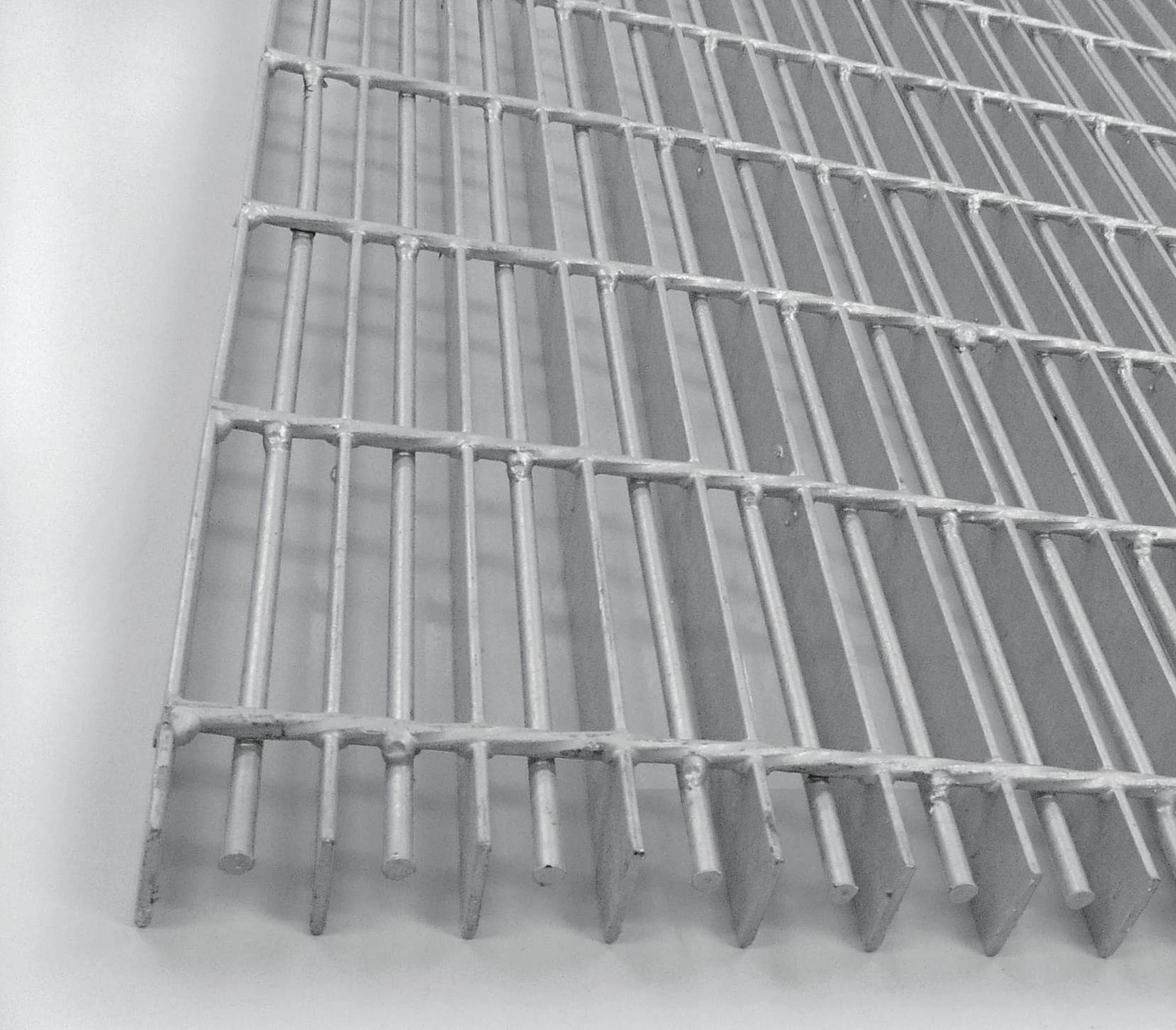

Lionweld Meiser safety grating is designed to prevent a 10 mm ball (N-Type) or 15 mm ball (W-Type) from passing through the flooring. Safety grating is a variation of safegrid flooring with a 8mm intermediate round bar welded to the underside of the transverse bars.

Safety grating is usually supplied with a serrated surface and is used in varying applications where it is necessary to pre- vent small objects such as nuts, bolts and tools from passing

Category:



LOAD BAR DEPTH 20MM 25MM 30MM 32MM 35MM 38MM 40MM 45MM 50MM 55MM
60MM 65MM 70MM 75MM 80MM* 90MM* 100MM* 120MM* 125MM*
LOAD BAR THICKNESS 3 MM 3.18 MM 4 MM 4.5 MM 4.76 MM 5 MM 6 MM 6.35 MM 8 MM 10 MM
LOAD BAR TYPE PLAIN – SERRATED “PLAIN ONLY (FB ABOVE 80MM – 125MM)
CROSS BAR (Twisted Square Bar) 4.6 MM 5 MM 5.4 MM 6 MM 6.4 MM 7.6 MM 8 MM 10 MM
CROSS BAR (Round Bar) – DIA 5 MM 6 MM



BEARING BAR PITCH: N W
30 MM

30.15 MM

41 MM

41.45 MM



CORSS BAR PITCH 25 MM 33 MM 38 MM 50 MM 76 MM 100 MM 101.6 MM



FINISH : SELF COLOUR (BLACK) Allows for on-site fabrication.
HOT DIP GALVANIZED Hot dip galvanized to BS EN ISO 1461, ASTM A123 or other international hot dip galvanizing standards.

Surface preparation by blasting when required will be charged extra

PAINTED As per Project Requirement
